Stable Extrusion Blown Film Plant Double Station Electric Reversing Structure

Name: Stable Extrusion Blown Film Plant Double Station Electric Reversing Structure
Brand: saisaer
Price: 1 USD

Brand Name : saisaer

Model Number : SJ50 SJ55 SJ60

Certification : ISO CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 30 work days

function : film making and printing

printing type : gravure

printing color : two

film width : <1000mm

extruder size : 50mm 55mm 60mm

extruder screw l/d : 28

Contact Now

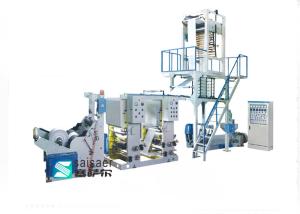

T series Ldpe Film Blowing Machine with Gravure Printing Machine

Application and features of film blowing machine:
This machine is used for blowing LDPE, HDPE, LLDPE plastic film, widely used in fruit, food, clothing, textiles, daily necessities and other civil and industrial products packaging.

Main structure and features of printing machine:
1. Double-station electric reversing structure is adopted for winding and unwinding;
Realize non-stop feeding.
2. Oven: the upper fan is connected with the lower fan, and the exhaust fan is connected with a large centrifugal fan.
3. The printing press roller adopts double cylinder embossing, and the rise and fall of the press roller are controlled by electromagnetic valve
4. Heavy-duty stable pneumatic ink knife holder: the scraper can be adjusted up and down and Angle at will, and the horizontal movement of synchronous motor is adopted.
Features: extended version of the service life.
5. Mounting mode: no axle mounting for air cap. Mounting mode: gear box clutch pneumatic mounting

The parameters:

model	SJ50-YT2600	SJ55-YT2800	SJ65-YT21000
raw material	LDPE,HDPE,LLDPE	LDPE,HDPE,LLDPE	LDPE,HDPE,LLDPE
screw diameter	φ50	φ55	φ60
l/d	28	28	28
motor power	11	15	18.5
max.capacity	40	50	70
die head diameter	φ60-φ80	φ80-φ150	φ100-φ160
film width	550	800	1000
film thickness	0.008-0.10	0.008-0.10	0.008-0.10
printing length	191-1200	191-1200	191-1200
printing width	550	800	1000
total power	28KW	32KW	40KW
machine weight	3.5T	4T	5T
dimension(mm)	6000×2400×4000	8000×2400×4000	8500×2600×4600
