Full Automatic T Shirt Bagging Machine Single Line 5T Punching Capacity Easy Operation

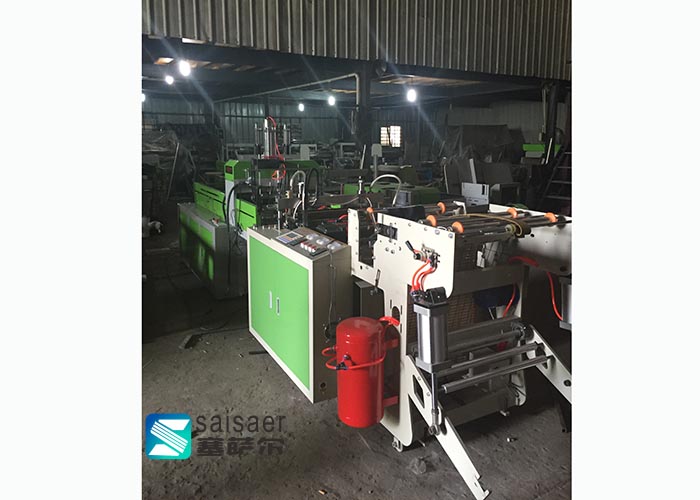

Full automatic single line T-shirt plastic bag making machine

General features:

Single production line, easy to run and maintain.

Hot sealing and hot cutting, highly automatic to produce stronger T-Shirt bags

Single photocell enables to cut printed bags

Position controller controls the operation, clear settings system for easy operation

Static eliminator to get rid of statics on film surface for better cutting

Auxiliary punching controller installed on punching unit to cooperate with cutting/sealing unit

Automatically moving conveyor belts, very convenient for operator to pack the bags

Digital temperature controllers to adjust the temperature of the heating bar

Specification:

Power supply: 220V 50Hz single phase

Power consumption: around 4.5KW

Maximum bag making length: 0.8M

Maximum bag cutting width: 60CM

Thickness of bags: 0.006-0.2mm

Cutting blade length: 700mm

Rubber roller length: 700mm

Bag cutting speed: 30-120pcs/line depending on bag length, width and thickness

Main motor capacity: 1.5KW; controlled by inverter

Step motor capacity: 37N/M;

DC motor: 370W

Static eliminator: 250W 16KV

Temperature controller 2pcs controlling the temperature of the two sealing bar

Air pressure needed for punching unit: 0.5-0.6Mpa

Punching air cylinder: 5T

Conveyor driving motor: 1.5KW controlled by inverter

Conveyor belts size: 1.5M x 0.7M

Punching blade come with machines: 2 sets

Machine dimension: L x W x H: 4.5 x 1.2x1.5M

Machine Weight: around 1500 KG
