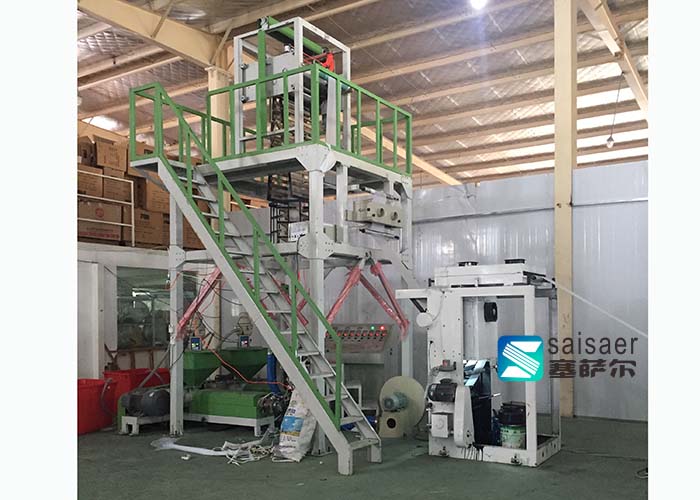

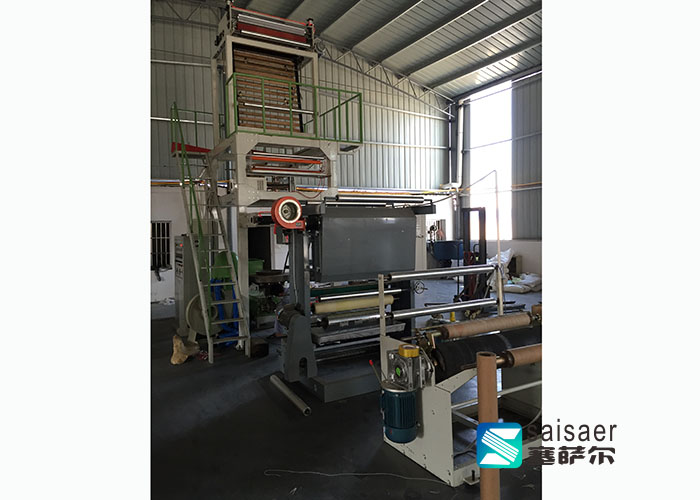

plastic PE film blowing machine with flexographic printing unit
Product usage:
Used for blowing high and low pressure polyethylene, the products are widely used in composite film, packaging film, agricultural cover film, textiles, clothing bags and other packaging film;
Product features:
The main motor adopts frequency conversion regulator speed, which increases the stability of the main motor speed regulation and can save 30% of the electric energy.
Screw barrel is made of 38# chromium-molybdenum aluminum, which is nitrogenated and durable.
Traction frame adopts lifting type, no matter blowing large or small size film can make its cooling effect reach the best;
Double section and double winding: three-moment motor is adopted to maintain appropriate tension, so as to make winding neat and easy to change.
Rotating head: can make the thickness of the film even, the rolling surface more even, especially suitable for composite film, printing film.
(supplier of high quality film blowing machine) letterpress printing film blowing conjoined unit
The parameters:
| MODEL OF MACHINE | SSE-φ45cw | SSE-φ50cw | SSE-φ55cw |
| SUITABLE MATERIAL | HDPE | HDPE | HDPE |
| SCREW DIAMETER | φ45mm | φ50mm | φ55mm |
| SCREW I/D LENGTH | 30 | 30 | 30 |
| BLOWING FILM DRIVING MOTOR | 15Kw | 18.5Kw | 22Kw |
| MAX.EXTRUSION OUTPUT | 30-45kg/hr | 35-50kg/hr | 40-70kg/hr |
| DIE SIZE | 60/80mm | 60/80mm | 80/100mm |
| WIDTH OF BLOWING FILM | 600mm | 800mm | 1000mm |
| THICKNESS OF BLOWING FILM | 0.007-0.08mm | 0.007-0.08mm | 0.008-0.08mm |
| PRINTING LENGTH | 250-910mm | 250-910mm | 250-910mm |
| PRINTING WIDTH | 560mm | 750mm | 950mm |
| WEIGHT OF OVERALL | 4200kg | 4800kg | 5500kg |
| OVERALL DIMENSIONS (L×W×H) | 7.0×2.2×4.5m | 7.2×2.4×5m | 8.2×2.8×5.5m |
| OPTIONAL EQUIPMENT: ① AUTO LIADER ②AIR COMPRESSOR③FILM SURFACE TREATER |
